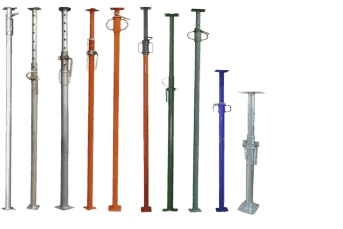

Adjustable Telescopic Steel Props
Adjustable Telescopic Steel Props is a structural member used to support the weight of scaffolding platforms and other loads. Adjustable Props are often used in situations where the height of the scaffolding needs to be changed frequently.
Material/Finish: Mild Steel, Hot dipped galvanized, Painted, Powder Coated, Red Oxide Finish
Adjustable Telescopic Steel Props are Manufactured out of 48.3mm and 60.0mm Diameter Heavy Duty/Medium Duty/Light Duty ERW tubes
Size Chart
| S.No | Size | Minimum | Maximum |
|---|---|---|---|
| 1 | 0 | 1.00 Mtr (3’) | 1.75 Mtr (6’) |
| 2 | 1 | 1.50 Mtr (4’ 11”) | 2.75 Mtr (9’) |
| 3 | 2 | 2.20 Mtr (7’) | 3.80 Mtr (12’.0’) |
| 4 | 3 | 2.20 Mtr (7’) | 4.00 Mtr (13’.0’) |
| 5 | 4 | 3.00 Mtr (9’ 10’’) | 4.60 Mtr (15’.0’) |
| 6 | 5 | 3.00 Mtr (9’ 10”) | 5.60 Mtr (18’.0’) |
